Bussmann PVM熔断器 光伏专用熔断器
    发布时间: 2012-01-05 14:58
【新品推出】快速熔断 10x38mm 光伏专用 600 VDC UL认证,CSA认证组件,4 - 30A PVM系列

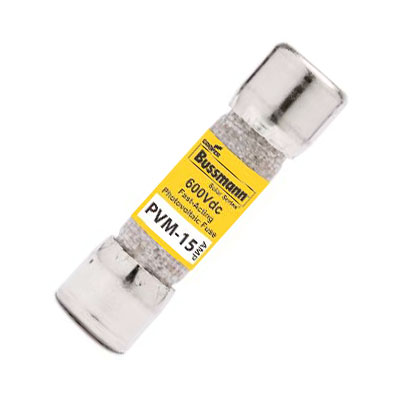

Bussmann PVM熔断器 光伏专用熔断器

太阳能电池板应用中的光伏熔断器  / 阵列保护用熔断器 /  4A 30A  600Vdc PVM 系列  / 10 x 38 mm   / 特点:熔断器系列产品经过特别设计,用以保护和隔离光伏组列。熔断器能够分断故障PV阵列(反向电流、多排阵列故障)产生的较低过载电流。




产品规格型号:

PVM-4 PVM-7 PVM-10 PVM-20
PVM-5 PVM-8 PVM-12 PVM-25
PVM-6 PVM-9 PVM-15 PVM-30
工作类别:
gPV UL PV 熔断器
熔断器尺寸:
10x38mm
PCB 熔丝夹:
1A3400-9
模块化熔断器座:
CHM1D-PV-IEC
CHPV1 (单极无指示)
CHPV1I (单极氖灯指示)
标准/认证:
IEC 60269-6, UL 2579,
符合RoHS,
UL 列示的 (1-15A)E335324
待审核:CCC
描述:
10x38mm熔断器系列产品经过特别设计,用以保护和隔离光伏组列。熔断器能够分断故障PV阵列(反向电流、多排阵列故障)产生的较低过载电流。
包装:
MOQ: 10
包装 100% 可回收


额定电压:
1000Vdc
电流:
1-6A, 8-15A and 20A
额定分断能力:
50kAdc
最小分断电流:
1.3 x In
PV 熔丝选用配合:
薄膜电池与4”, 5” 6”晶体硅电池
时间常数:
1-3ms



Catalog Symbol: PVM
Description
A range of UL 2579 fast-acting 600Vdc Midget fuses
specifically designed to protect solar power systems in extreme
ambient temperature, high cycling and low level fault current
conditions (reverse current, multi-array fault).
Specifications
Volts: 600Vdc to UL 2579
Amps: 4 - 30A
Interrupting Rating: 50kA DC (4-30A)
Agency Information
UL Listed 2579, Guide JFGA, File E335324, CSA Component
Certified C22.2
Typical Applications
Solar Combiner Boxes
Inverters
Solar Strings
Recommended Fuse Blocks and Holders
Modular CHM Series
Fuse Holders Data Sheet #2053
Open BM Series Fuse Blocks Data Sheet #1104
In-Line Fuse Holders Data Sheet #2127 & #2126
